What is ASTM A694?

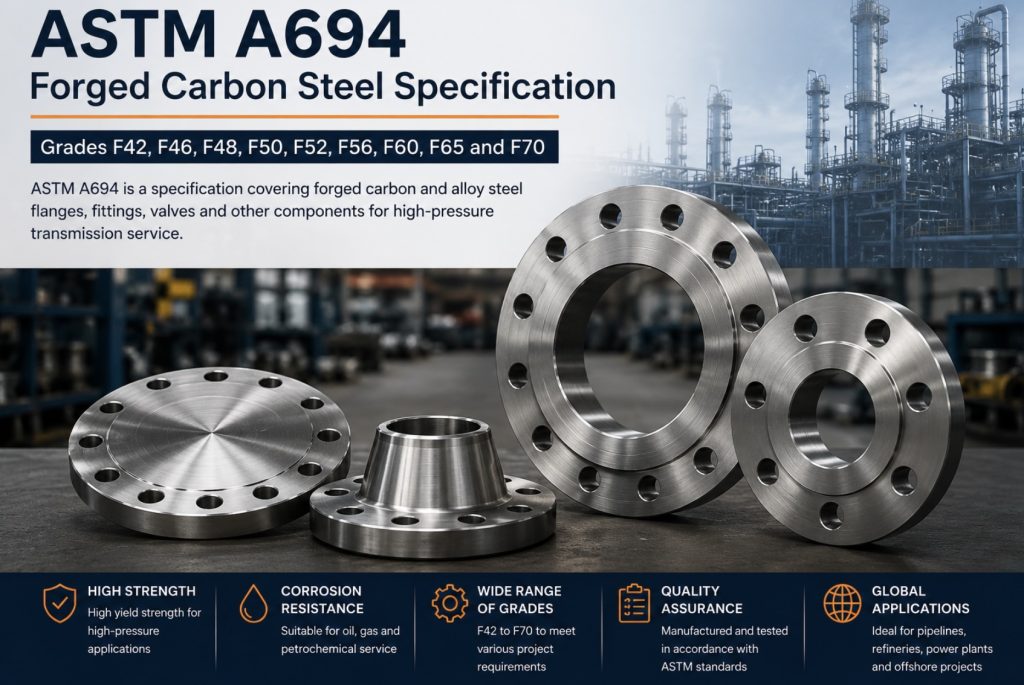

ASTM A694 is a specification covering forged carbon and alloy steel flanges, fittings, valves, and other components intended for high-pressure transmission service. The specification is widely used in oil and gas pipelines, petrochemical plants, offshore facilities, and energy projects where higher strength materials are required.
Unlike ASTM A105, ASTM A694 provides a range of higher-strength grades including F42, F46, F48, F50, F52, F56, F60, F65, and F70. These grades are selected based on the required yield strength and service conditions.
ASTM A694 Grades
ASTM A694 includes several strength grades designed for different pressure and transmission applications.
| Grade | Minimum Yield Strength |
|---|---|
| F42 | 42 ksi (290 MPa) |
| F46 | 46 ksi (315 MPa) |
| F48 | 48 ksi (330 MPa) |
| F50 | 50 ksi (345 MPa) |
| F52 | 52 ksi (360 MPa) |
| F56 | 56 ksi (385 MPa) |
| F60 | 60 ksi (415 MPa) |
| F65 | 65 ksi (450 MPa) |
| F70 | 70 ksi (485 MPa) |
Among these grades, F52, F60, F65, and F70 are the most commonly specified for pipeline projects.
Chemical Composition
The chemical composition of ASTM A694 materials varies depending on the grade and manufacturing process. The specification limits carbon, manganese, phosphorus, sulfur, and other alloying elements to ensure mechanical performance and weldability.
Typical elements include:
- Carbon (C)
- Manganese (Mn)
- Silicon (Si)
- Phosphorus (P)
- Sulfur (S)
Actual values should comply with the manufacturer’s mill test certificate (MTC).
Mechanical Properties
ASTM A694 materials are designed to provide higher strength than conventional forged carbon steels.
Key mechanical properties include:
- High yield strength
- Excellent tensile strength
- Good toughness
- Suitable weldability
- Reliable performance in high-pressure transmission systems
The required mechanical values depend on the selected grade.
Applications of ASTM A694
ASTM A694 forgings are widely used in:
Oil and Gas Pipelines
High-pressure transmission pipelines transporting crude oil, natural gas, and refined products.
Petrochemical Facilities
Processing units operating under elevated pressure conditions.
Offshore Platforms
Flanges and fittings used in offshore drilling and production systems.
LNG Projects
Liquefied natural gas terminals and transportation facilities.
Power Generation
Steam and energy transmission systems requiring high-strength forged components.
Products Manufactured from ASTM A694
The ASTM A694 specification is commonly used for manufacturing:
- Blind Flanges
- Weld Neck Flanges
- Slip On Flanges
- Threaded Flanges
- Socket Weld Flanges
- Long Weld Neck Flanges
- Forged Fittings
- High-Pressure Valves
These products are typically manufactured according to ASME B16.5, ASME B16.47, MSS SP-44, and related standards.
ASTM A694 vs ASTM A105
ASTM A694 and ASTM A105 are both forged carbon steel specifications, but they serve different applications.
| Property | ASTM A694 | ASTM A105 |
|---|---|---|
| Strength | Higher | Standard |
| Application | Transmission Service | General Industrial Service |
| Pipeline Projects | Preferred | Limited |
| Yield Strength | F42-F70 Grades | 36 ksi Minimum |
| Pressure Service | High Pressure | Medium Pressure |
ASTM A694 is generally selected when additional strength is required for pipeline and transmission systems.
ASTM A694 F52 vs F65
F52 and F65 are among the most frequently used grades.
| Property | F52 | F65 |
|---|---|---|
| Yield Strength | 52 ksi | 65 ksi |
| Typical Application | Standard Pipeline Service | High-Pressure Pipeline Service |
| Strength Level | Medium | High |
F65 is typically chosen for more demanding pressure and transmission requirements.
Inspection and Testing
ASTM A694 products may undergo:
- Visual Inspection
- Dimensional Inspection
- Tensile Testing
- Hardness Testing
- Ultrasonic Testing (UT)
- Magnetic Particle Examination (MT)
- Positive Material Identification (PMI)
- Third-Party Inspection
Frequently Asked Questions
What is ASTM A694 used for?
ASTM A694 is used for forged flanges, fittings, valves, and components intended for high-pressure transmission service.
What is the most common ASTM A694 grade?
F52, F60, F65, and F70 are the most widely used grades in pipeline projects.
Is ASTM A694 stronger than ASTM A105?
Yes. ASTM A694 provides significantly higher yield strength compared with ASTM A105.
Can ASTM A694 be welded?
Yes. ASTM A694 materials are generally suitable for welding when proper procedures are followed.
What industries use ASTM A694?
Oil and gas, petrochemical, offshore, LNG, and power generation industries commonly use ASTM A694 products.
